Custom-Designed Solutions IMPATT Oscillators

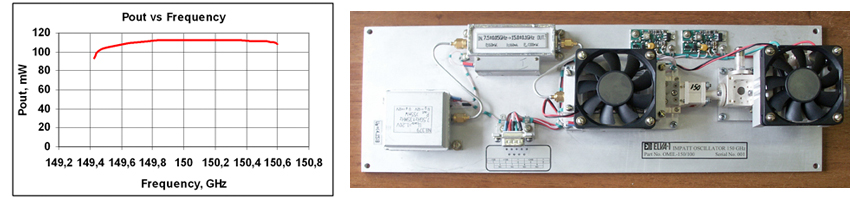

  • Voltage controlled oscillator at 150 GHz @ 100mW

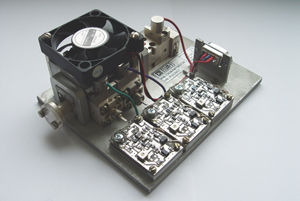

  • Free running Pulse Source 140 GHz @3.6W with control output
Data
Operating Frequency, GHz 140
Output Power, W 3.6
Pulse width, ns 80
Repetition Frequency, kHz 50
Phase Noise, dBc/Hz at 10 kHz -65
Biasing Voltage, V +27
Waveguide, flange WR-08, UG-387/U-M

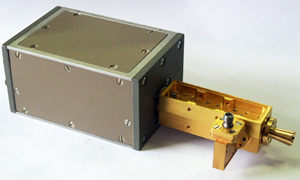

  • Fixed oscillator at 130 GHz, Pout=130 mW
Data
Operating Frequency, GHz 130±0.02
Frequency stability, 1/C 5*10-6
Output Power, mW 130
Power Stability, dB/C 0.02
Phase Noise, dBc/Hz at 10 kHz -65
Biasing Voltage, V +24, +12
Waveguide, flange WR-06, UG-387/U-M

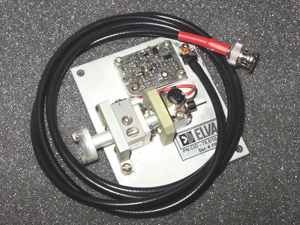

  • Fixed oscillator at 77 GHz, Pout=15 mW
  Data
Operating Frequency, GHz 77
Frequency stability, 1/C 5*10-6
Output Power, mW 15
Power Stability, dB/C 0.02
Phase Noise, dBc/Hz at 10kHz -65
Biasing Voltage, V +27
Waveguide, flange WR-12, UG-387/U-M
