Precision signal control for waveguide systems

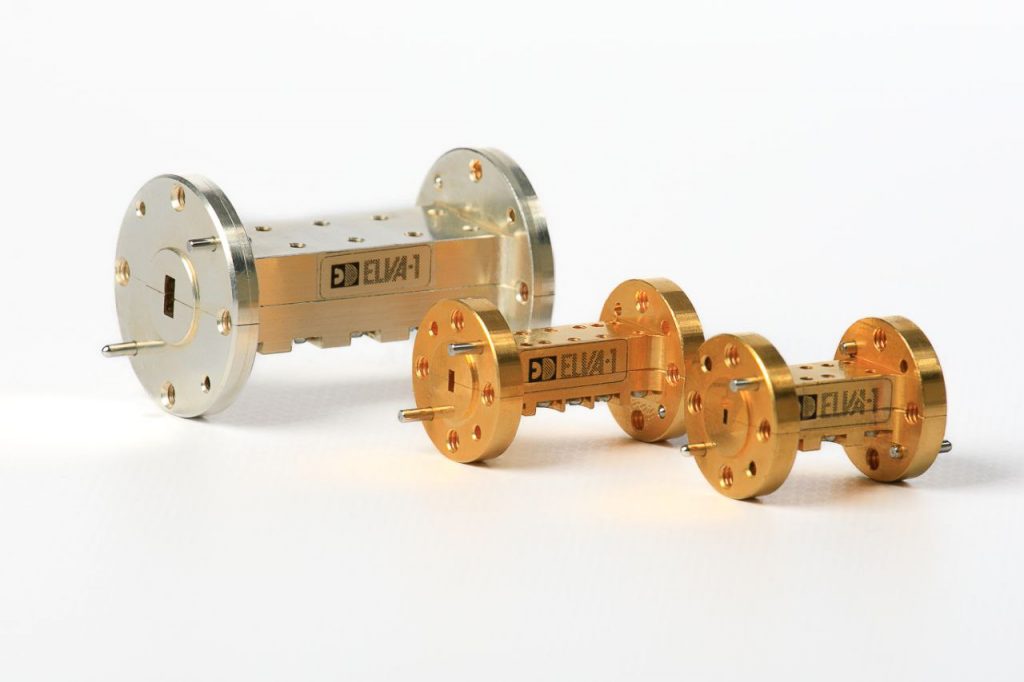

Waveguide fixed attenuators are precision passive components designed to introduce a defined level of attenuation into waveguide transmission lines. They are ideal for applications requiring consistent and repeatable signal reduction without introducing distortion.
ELVA-1 offers a comprehensive range of fixed waveguide attenuators with attenuation levels from 1 dB to 40 dB. Each unit is engineered for low VSWR and minimal insertion loss within its operating frequency band. Models are available for all standard waveguide bands.
Applications
• Signal level adjustment in test environments
• Calibration of RF measurement systems
• Optimization of RF signal chains
• Receiver protection in high-power applications
Key Features
• Fixed attenuation values from 1 dB to 40 dB
• High accuracy and long-term stability
• Low insertion loss with excellent VSWR performance
• Compact design compatible with waveguide systems
• Broad selection across standard frequency bands
• Custom attenuation values available upon request
Abbreviation code legend (How to order)
When ordering, please specify:
• Waveguide band (e.g., WR-28)
• Desired attenuation value (e.g., 20 dB)
• Flange type (e.g., UG-599/U)
• Any special requirements (e.g., high power, custom flanges)
Example:
WA-28/20-UG599/U
— Waveguide attenuator, WR-28 (K-band), 20 dB, UG-599/U/U flanges. centred at 70 GHz
Please contact us for tailored solutions.
Specifications
| Parameter | Value |
|---|---|
| Attenuation Values | 1 to 40 dB (1 dB steps or custom) |
| Frequency Range | 18 GHz to 260 GHz (band-dependent) |
| Attenuation Accuracy | ±0.5 dB (typical) |
| VSWR | ≤ 1.15 (typical) |
| Power Handling | Up to 1 W (CW); higher on request |
| Flange Types | UG, UDR, PDR (others on request) |
| Material | Aluminum or brass, silver/gold-plated |
| Operating Temperature | −40 °C to +60 °C |
