Broadband Active Frequency Multiplier up to 165 GHz

Broadband Active Frequency Multipliers AFM-XX Series

Broadband Frequency Multipliers (×2 / ×6 / ×8) with High Efficiency and Low Noise

Broadband Active Frequency Multiplier up to 165 GHz

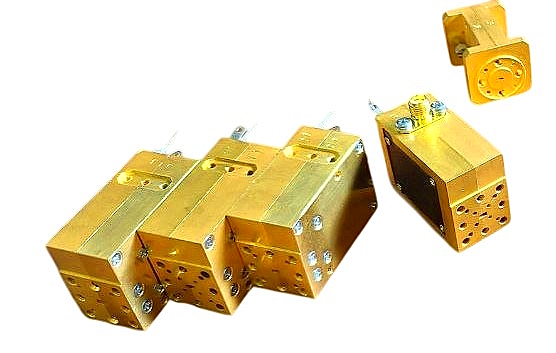

The AFM-XX series is a line of high-efficiency active frequency multipliers designed for compact solid-state signal sources operating in the millimeter-wave range. These multipliers are ideal for applications such as radar, wireless links, test equipment, and other microwave systems where small form factor and strong output performance are essential.

The series includes devices with multiplication factors of ×2 / ×6 / ×8, depending on the frequency range. Maximum output frequency can be further extended using an external passive doubler FM-06-2.

AFM-XX series multipliers can be supplied with a built-in voltage-controlled oscillator (VCO). In this configuration, the user has access to a Vtune input for frequency tuning and an f/2 output signal from the internal VCO for integration with a phase-locked loop (PLL). This allows the output frequency to be stabilized and locked to a reference signal.
Integrated input and output buffers ensure high output power even with a low input signal level.

Key Features

  • Low spurious harmonic content – clean output signal with minimal unwanted harmonics

  • Low phase noise and AM noise – stable signal for precision applications

  • Compact design – small footprint for easy integration into systems

  • High reliability and rugged construction – built to perform in demanding environments

Typical Applications

  • Laboratory test and measurement equipment

  • Millimeter-wave power sources

  • Amplitude and phase modulation (AM/PM) systems

  • Electronically tunable signal sources

  • Spectroscopy and radiometry systems

Abbreviation code legend (How to order)

AFM-XX-Y, where:
XX- Input Waveguide
Y – Multiplication factor.

Example: AFM-15-6 denotes a version with WR-15 waveguide and a ×6 multiplication factor.
Contact us for custom multiplication values tailored to your project.

Specifications

Model Number AFM-15-6 AFM-12-6 AFM-10-8 FM-06-2
Frequency Range (GHz) 57-66 71-86 86-106 110-165
Input Waveguide WR-15 WR-12 WR-10 WR-06
Waveguide Flange UG-385/U UG-387/U-M UG-387/U-M UG-387/U-M
Total multiplication factor 6 6 8 2
Output power, dBm (typ.) 15 12 10 -13
Input power ,  dBm (typ.) 5-10 5-10 5-10 10-15

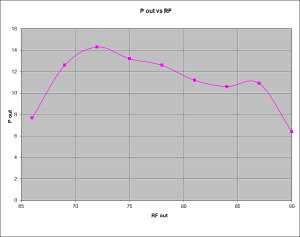

Typical graph of Broadband Active Frequency Multiplier

Typical graph of Broadband Active Frequency Multiplier
